How to virtualize volumes on USPV

After you login to storage navigator, change the mode to edit then use the Go menu and select Universal Volume Manager-> Volume Operation
uv2

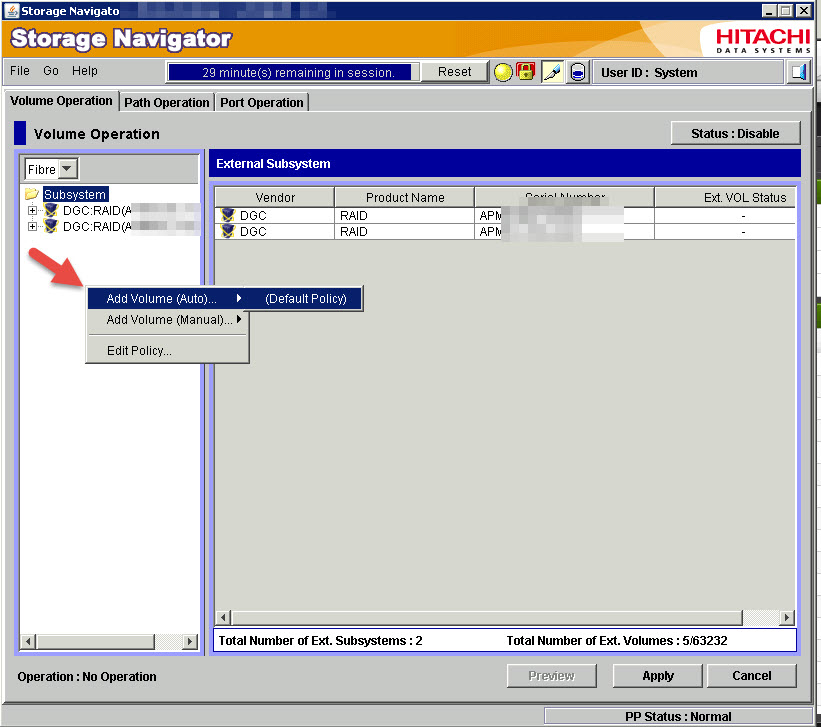

Select Add volume (auto) -> Default policy
uv3
Click Port Discovery

uv4

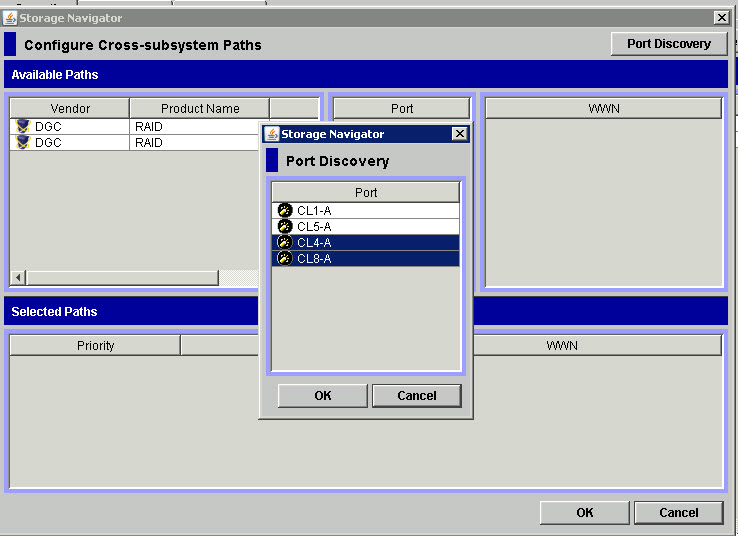

Select the ports where you zoned the external storage (you can use ctrl or shift to select all the ports at once)
uv4_2

The ever loading message
uv4_3

Now you will see the Array with the serial number. Click on it then click on the first port, the click on the WWn then right click the WWN and select Add. Repeat for the second port. When done click Ok.
uv6

Expand your s/n array and check the volumes that you presented to the uspv. Create a table with the ExG, LDEV and Characteristic, you will need it if you need to map the volumes to a host.
uv8
Click Apply then Ok.
uv9
